1–16 L Output Level
The machine displays output strength as 1–16 L for direct adjustment through the operating interface.
BM Seven ColorEnery Pneumatic Series

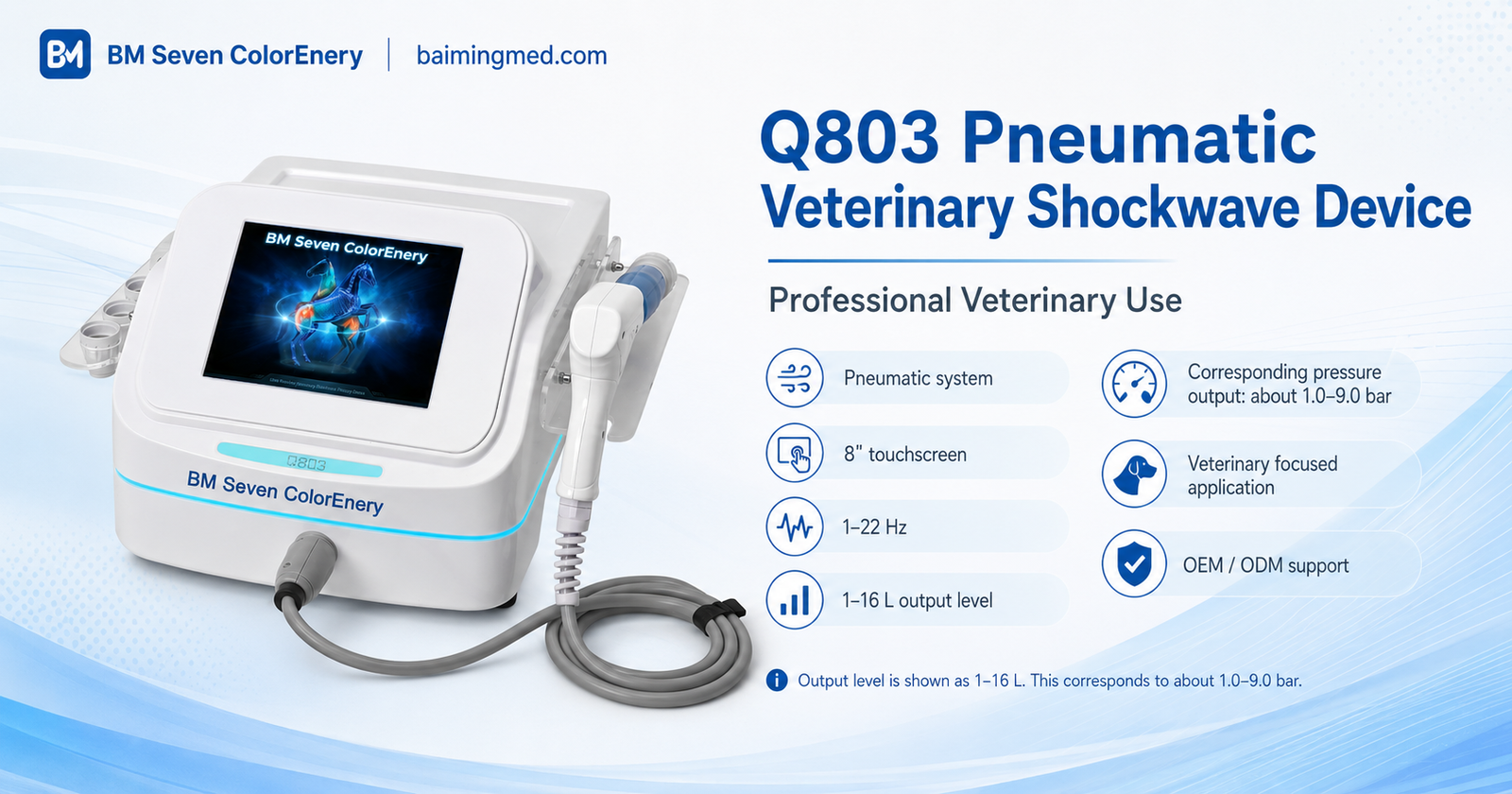

Q803 Pneumatic Veterinary Shockwave Device
A pneumatic veterinary shockwave device with an 8-inch touchscreen, 1–22 Hz adjustable frequency, 1–16 L output level and five working heads for professional veterinary rehabilitation support applications.
- Pneumatic system
- 8-inch touchscreen
- 1–22 Hz frequency
- 1–16 L output level
- About 1.0–9.0 bar
- Five working heads
Product Overview
Pneumatic Output with Clear Parameter Control
Q803 combines a compact tabletop structure, touchscreen control and interchangeable working heads for equine and companion-animal rehabilitation support environments.
About 1.0–9.0 bar
The 1–16 L output range corresponds to a pressure output of approximately 1.0–9.0 bar.
1–22 Hz Frequency
Adjustable frequency supports different working-head selections and professional application requirements.
8-Inch Touchscreen
A clear touchscreen interface provides access to output, frequency, count and preset-area controls.

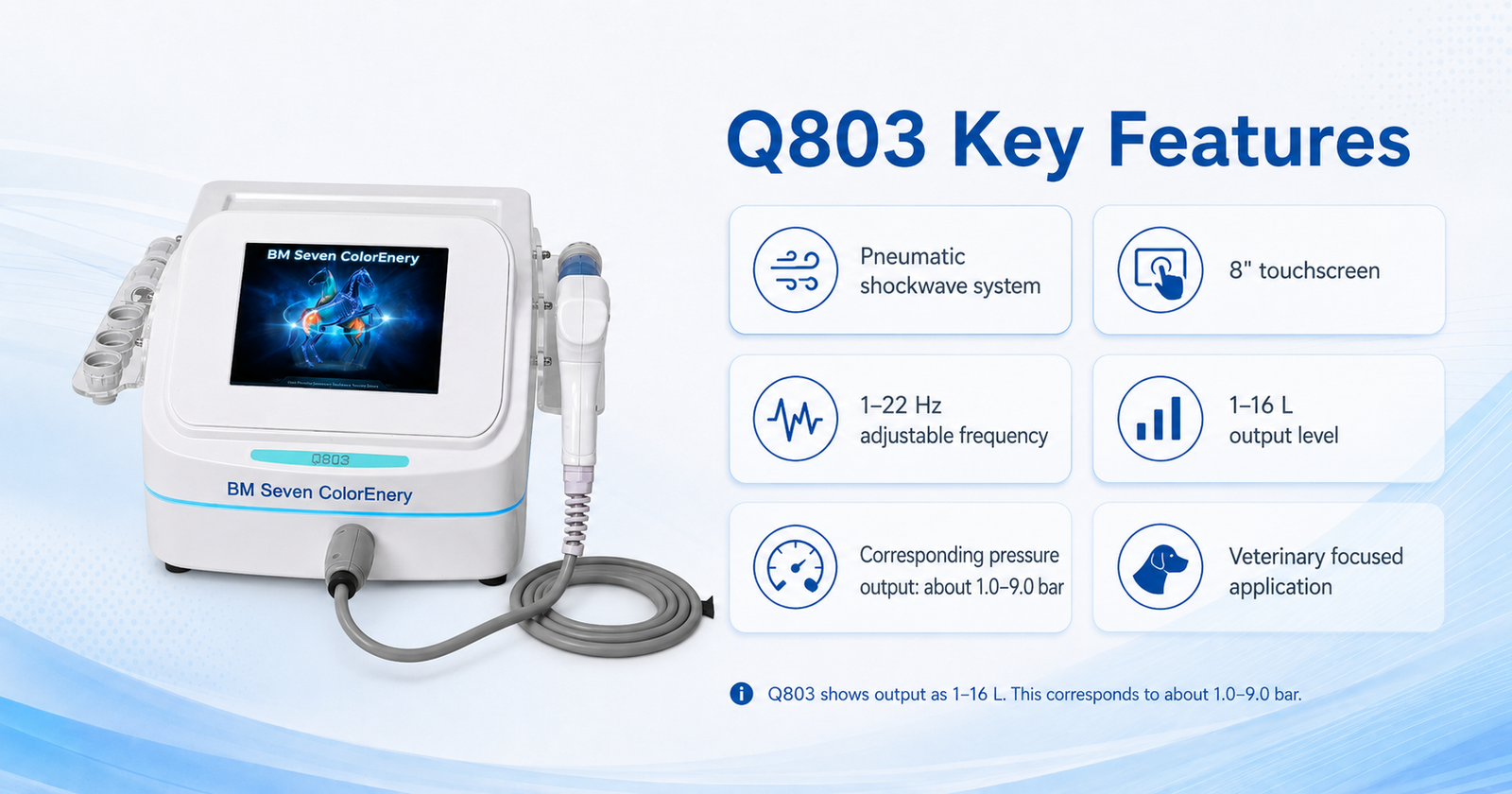

Key Features
Q803 Core Product Configuration
A structured overview of the primary operating parameters and veterinary-focused product positioning.
Technical Information
Q803 Technical Specifications
Core product specifications for configuration review, distributor communication and order discussion.
| Model | Q803 |
|---|---|
| Product Type | Pneumatic Veterinary Shockwave Device |
| Color | White |
| Operating Interface | 8-inch touchscreen |
| Working Frequency | 1–22 Hz |
| Output Level | 1–16 L |
| Corresponding Pressure Output | Approximately 1.0–9.0 bar |
| Count Settings | 500–3000 |
| Working Heads | 5 interchangeable working heads |
| Working-Head Center Diameters | 6 mm, 10 mm, 15 mm, 20 mm and 25 mm |
| Voltage | AC110V / AC220V automatic switching |
| Maximum Power | 350 W |
| Maximum Current | 5 A |
| Device Size | 295 × 360 × 250 mm |
| Package Size | 495 × 490 × 330 mm |
| Net Weight | 11.3 kg |
| Gross Weight | 13.9 kg |
Output description:
Q803 displays output strength as
1–16 L.
This corresponds to a pressure output of approximately
1.0–9.0 bar.
Product configuration, plug type, packaging, interface language
and documentation should be confirmed before order.

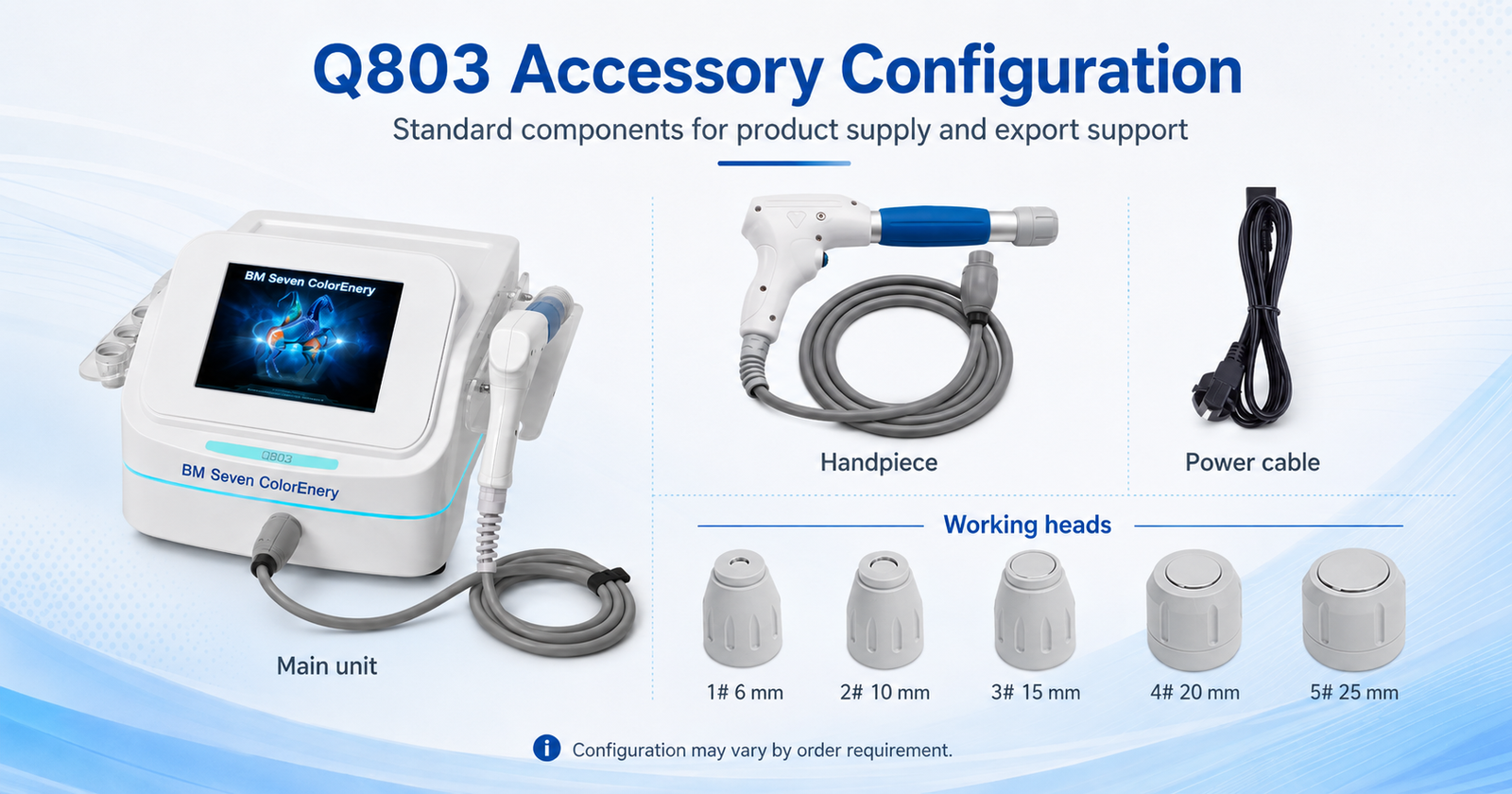

Standard Configuration
Q803 Accessory Configuration
The standard Q803 product configuration includes the main unit, pneumatic handpiece, power cable and five interchangeable working heads for professional veterinary equipment supply projects.
Main Unit
Compact Q803 tabletop unit with an 8-inch touchscreen, front cable connection and side accessory holders.
Pneumatic Handpiece
Connected handpiece with switch control and a replaceable working-head structure for professional operation.
Five Working Heads
Five working-head center diameters provide different options for application-area and positioning requirements.
Power and Documentation
Power cable, packaging information and available product files can be prepared according to the confirmed order.
1#
6 mm
2#
10 mm
3#
15 mm
4#
20 mm
5#
25 mm
Configuration note:
Working-head quantity, plug type, packaging, product files and
other accessories should be confirmed according to the final
order requirements.

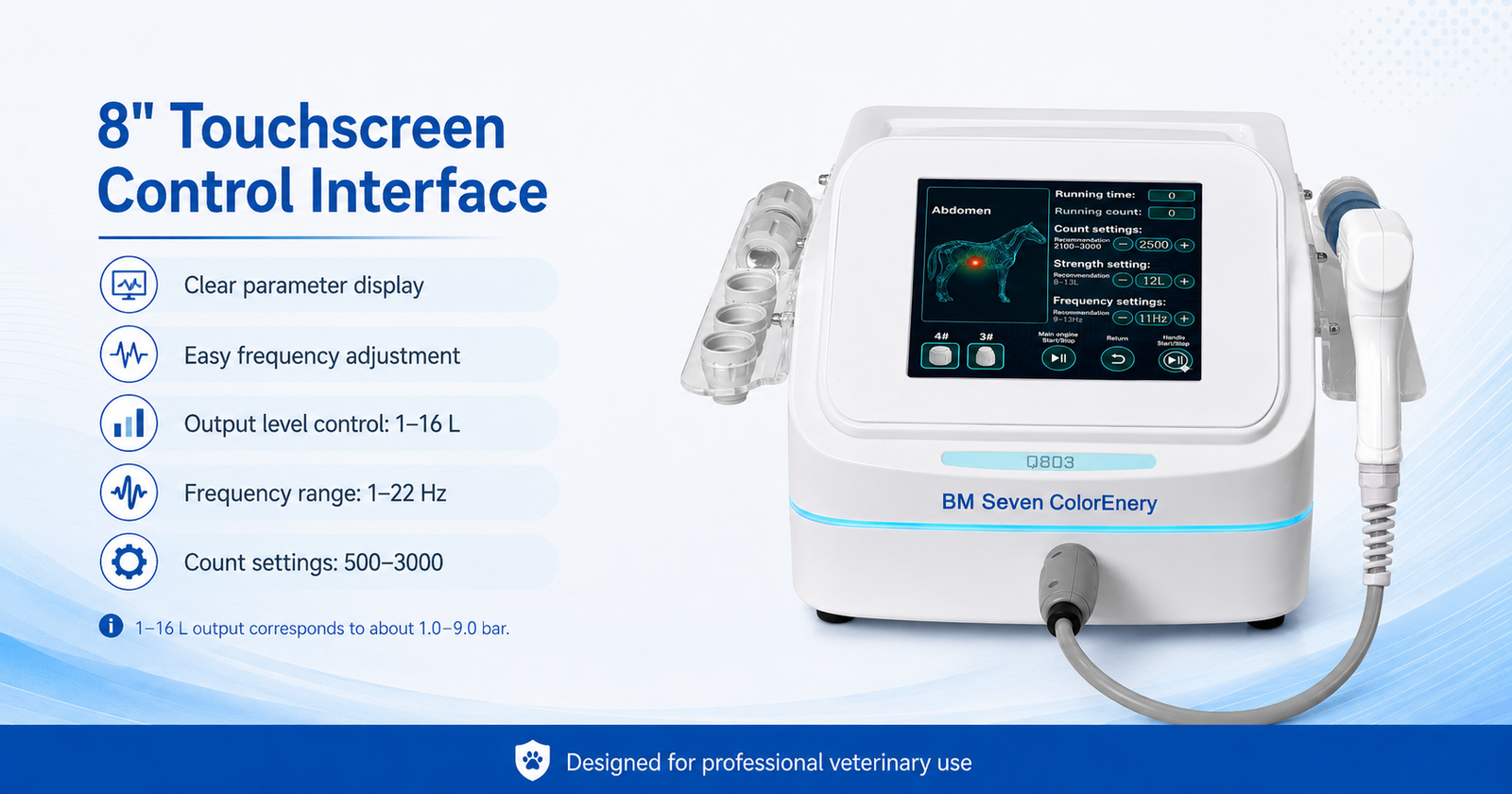

Operating Interface
8-Inch Touchscreen Control Interface
The Q803 touchscreen provides a clear view of frequency, output level, count settings and application-area selections for trained professional operation.
Clear Parameter Display
Main operating information is arranged in a clear interface for convenient parameter review.
1–22 Hz Adjustment
Frequency can be selected directly through the touchscreen according to the required operating settings.
1–16 L Level Control
Output strength is displayed as 1–16 L for direct and clearly visible adjustment.
500–3000 Count Settings
The operating count can be reviewed and adjusted through the touchscreen control panel.
Output setting explanation:
Q803 displays output strength as 1–16 L.
This corresponds to a pressure output of approximately
1.0–9.0 bar.
Veterinary Applications
Equine and Companion-Animal Application Scenarios
Q803 supports professional veterinary rehabilitation workflows involving horses, dogs, cats and smaller companion animals, with adjustable parameters and multiple working-head options.
Equine Rehabilitation Support
Suitable for professional horse-care environments, rehabilitation rooms, farm visits and mobile veterinary equipment workflows.
Canine Mobility Support
Adjustable frequency and output levels provide flexible configuration options for dogs of different sizes and application areas.
Feline Application Control
The compact handpiece and selectable working heads support careful positioning in professional feline rehabilitation environments.
Smaller Application Areas
Smaller working-head diameters provide additional positioning options for compact application areas and trained professional operation.
Professional-use note:
Output settings, working-head selection and handpiece positioning
should be determined by trained professionals according to the
animal, application area and operating requirements.
Business Cooperation
OEM / ODM and Export Support
BM Seven ColorEnery supports distributors, importers and professional buyers with Q803 product configuration, branding, packaging and export communication.
Logo Customization
Brand-name and logo placement can be discussed according to confirmed project requirements.
Packaging Support
Packaging labels, carton information and product presentation materials can be coordinated before order.
Language Version
Interface language, labels and available product documents can be discussed for different markets.
Accessory Configuration
Working-head options, plug type and accessory requirements can be confirmed according to the order.
Export Coordination
Product information, shipment preparation and export communication support are available for confirmed projects.
Buyer Information
Information to Confirm Before Quotation
Providing clear order information helps us prepare a more accurate product configuration and quotation discussion.
- Target country or market
- Estimated order quantity
- Required voltage and plug type
- Working-head configuration
- Logo and packaging requirements
- Interface-language requirements
Order confirmation note:
Final logo, packaging, language version, accessory configuration,
plug type and product documentation should be confirmed before
production and shipment.
Frequently Asked Questions
Q803 Product and Configuration FAQ
Common questions from distributors, importers and professional buyers reviewing the Q803 pneumatic veterinary shockwave device.
What type of output system does Q803 use?
Q803 uses a pneumatic output system with touchscreen control
and interchangeable working heads for professional veterinary
rehabilitation support applications.
What is the adjustable frequency range?
The adjustable working frequency range is 1–22 Hz.
How is the Q803 output strength displayed?
The interface displays output strength as 1–16 L.
This corresponds to a pressure output of approximately
1.0–9.0 bar.
How many working heads are included?
The standard configuration information includes five
interchangeable working heads with center diameters of
6 mm, 10 mm, 15 mm, 20 mm and 25 mm.
Which animal application scenarios are shown for Q803?
Q803 is presented for professional equine, canine, feline
and smaller companion-animal rehabilitation support environments.
Does Q803 support OEM / ODM cooperation?
Yes. Logo placement, packaging, interface language, plug type,
working-head configuration and available product documentation
can be discussed before order confirmation.
What information should buyers provide before quotation?
Buyers should provide the target country, estimated quantity,
voltage, plug type, working-head requirements, interface language,
branding and packaging requirements.
